VERLEGEHINWEISE:
Genaue Verlege- und Pflegeanleitung des SPORTEC multi-pavers-Belags senden wir Ihnen gerne auf Anfrage zu.
WEITERE TECHNISCHE DATEN:
Brandverhalten: Efl (B2) (DIN EN 13501-1)
Zugfestigkeit: mind. 1,7 N/mm²(Eigenprüfung)
Reißdehnung: mind. 58% (Eigenprüfung)
Wasserdurchlässigkeit: 23.878 mm/h (DIN EN 12616)
Abrieb: 0,4 g (DIN EN ISO 5470-1)
Resteindruck: 0,74 mm / nach 5 min
0,24 mm / nach 24 h
(DIN EN 1516)
Lichtreflexionsgrad (LRV): 3,0 % (bei schwarz) (EN 17317)
Belastbarkeit -statisch:
0,36 mm / nach 30 min
0,32 mm / nach 1 h
0,21 mm / nach 6 h
0,18 mm / nach 24 h
0,10 mm / nach 72 h
(DIN EN 1516)
Belastbarkeit -dynamisch:
0,08 mm / nach 30 min
0,06 mm / nach 1 h
0,05 mm / nach 6 h
0,05 mm / nach 24 h
0,03 mm / nach 72 h
(DIN EN 1516)
VOC Richtlinien: Französische VOC-Verordnung (A+)
Verlegung
Die Verlegung erfolgt entsprechend der VerlegeanleitungSPORTEC® multi-pavers.
Die aktuelle Verlegeanleitung kann auf der Homepage der KRAIBURG Relastec GmbH
& Co. KG heruntergeladen werden
SPORTEC multi-pavers (Full)
Includes 19% VAT
plus shipping
Additional duties, taxes and fees may apply for deliveries to non-EU countries.
PRODUCT DESCRIPTION:

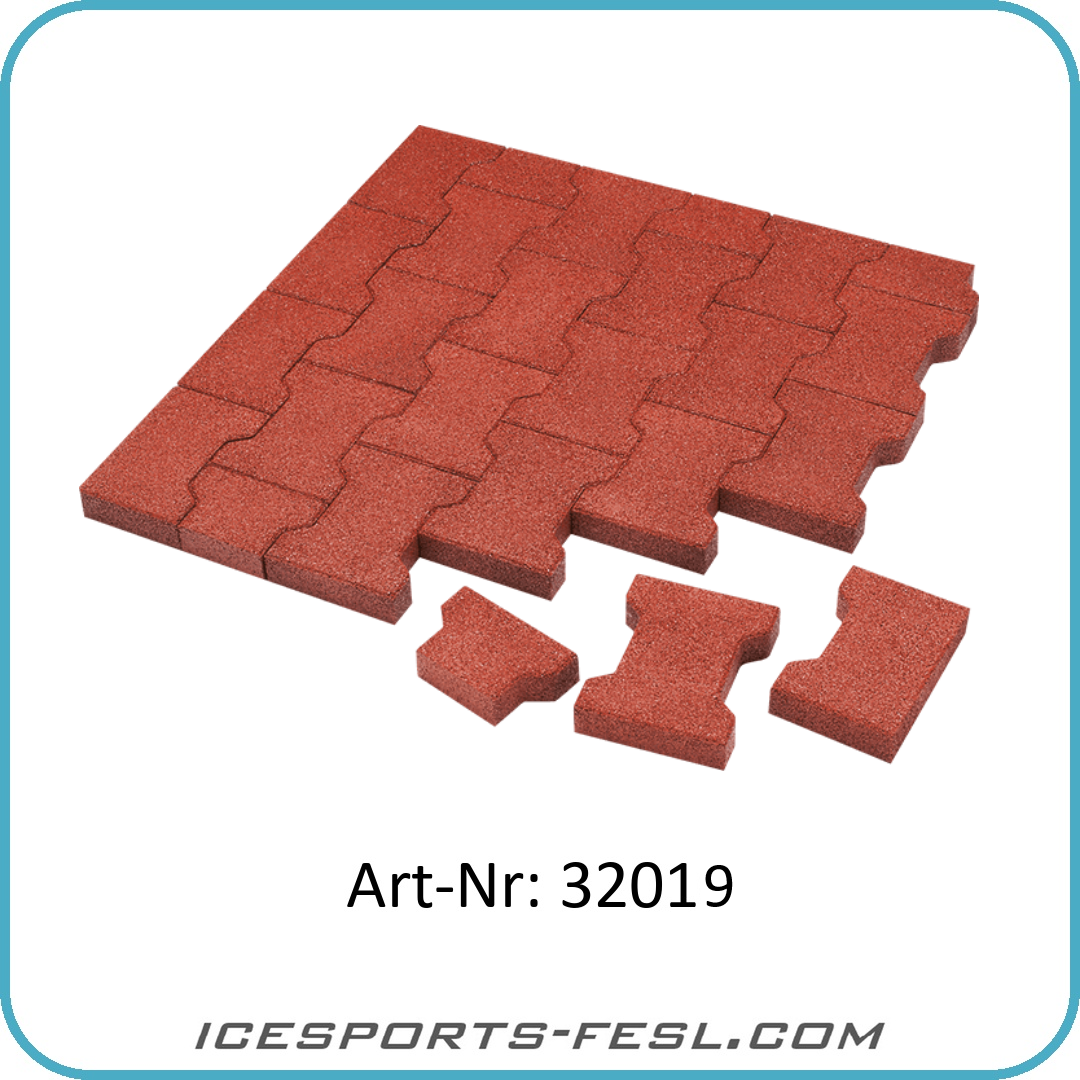

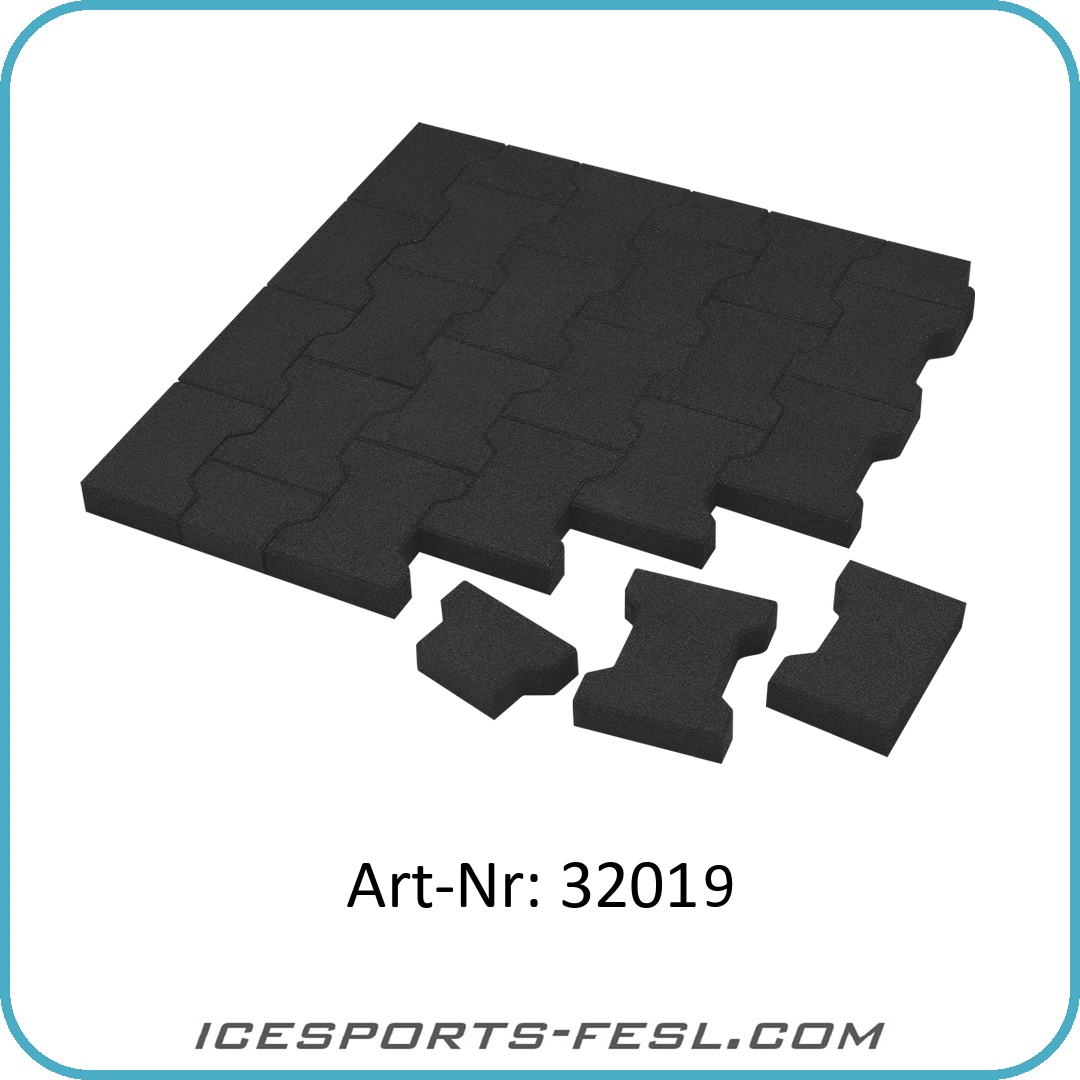

SPORTEC® multi-pavers are the ideal flooring solution for footpaths and fitness or leisure areas,
both indoors and outdoors. They provide a comfortable walking experience and protect exercise
equipment and weights thanks to their springy effect. The paving format allows for cost-effective
and easy installation.
KEY PRODUCT FEATURES:
– Recycled tyre granulate bound with polyurethane elastomer (+80% recycled content)
– Flexible and environmentally friendly flooring with a paving stone appearance
– Cost-effective and easy to lay thanks to the paving stone shape
– Comfortable underfoot
TECHNICAL SPECIFICATIONS:
Packaging unit: per m²
Dimensions (L x W x H): 200.0 x 165.0 x 4.3 cm
(0.033 m² per piece = 35 pieces per m²)

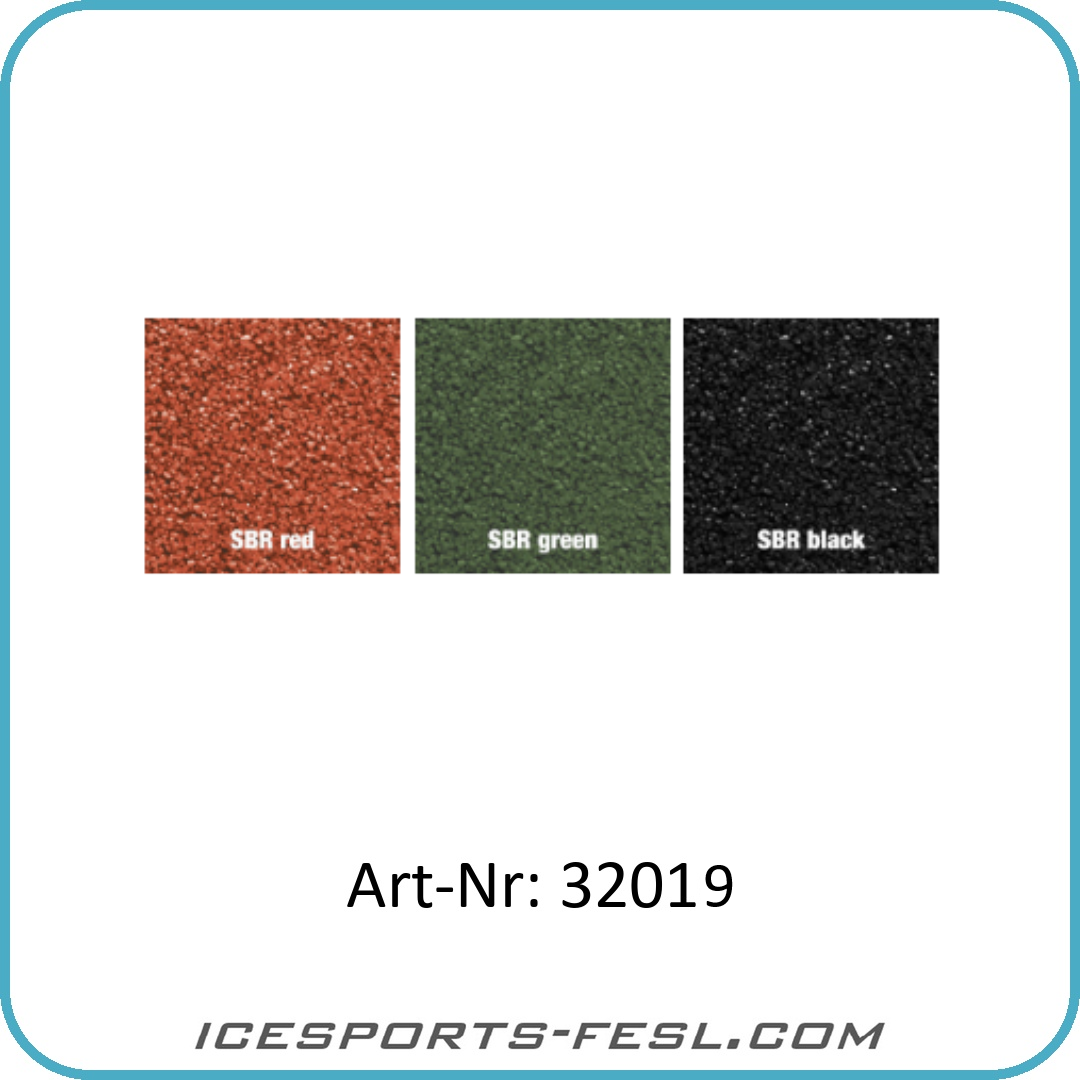

Colour: red, green, black
Minor colour variations are due to the nature of the material.
Bulk density: approx. 900 kg/m³
Weight: 35 × 1.2 kg/piece (whole)
Surface: smooth, closed-pored, chamfered edges
Underside: smooth, edges not chamfered
Please note that this product is made to order and therefore cannot be returned.
Protective sheets may vary in colour and texture.
This is not a stock item. It is produced on a project-by-project and order-by-order basis.
Thank you for your understanding.
INSTALLATION INSTRUCTIONS:
We will be happy to send you detailed installation and maintenance instructions for
the SPORTEC multi-pavers surfacing on request.
FURTHER TECHNICAL DATA:
Fire behaviour: Efl (B2) (DIN EN 13501-1)
Tensile strength: min. 1.7 N/mm² (in-house test)
Elongation at break: min. 58% (in-house test)
Water permeability: 23,878 mm/h (DIN EN 12616)
Abrasion resistance: 0.4 g (DIN EN ISO 5470-1)
Indentation resistance: 0.74 mm / after 5 mins
0.24 mm / after 24 hrs
(DIN EN 1516)
Light reflectance (LRV): 3.0% (for black) (EN 17317)
Load-bearing capacity – static:
0.36 mm / after 30 mins
0.32 mm / after 1 hour
0.21 mm / after 6 hours
0.18 mm / after 24 hours
0.10 mm / after 72 h
(DIN EN 1516)
Load-bearing capacity – dynamic:
0.08 mm / after 30 min
0.06 mm / after 1 h
0.05 mm / after 6 h
0.05 mm / after 24 h
0.03 mm / after 72 h
(DIN EN 1516)
VOC guidelines: French VOC Regulation (A+)
Installation
Installation must be carried out in accordance with the SPORTEC® multi-pavers installation instructions.
The current installation instructions can be downloaded from the KRAIBURG Relastec GmbH
& Co. KG website.
