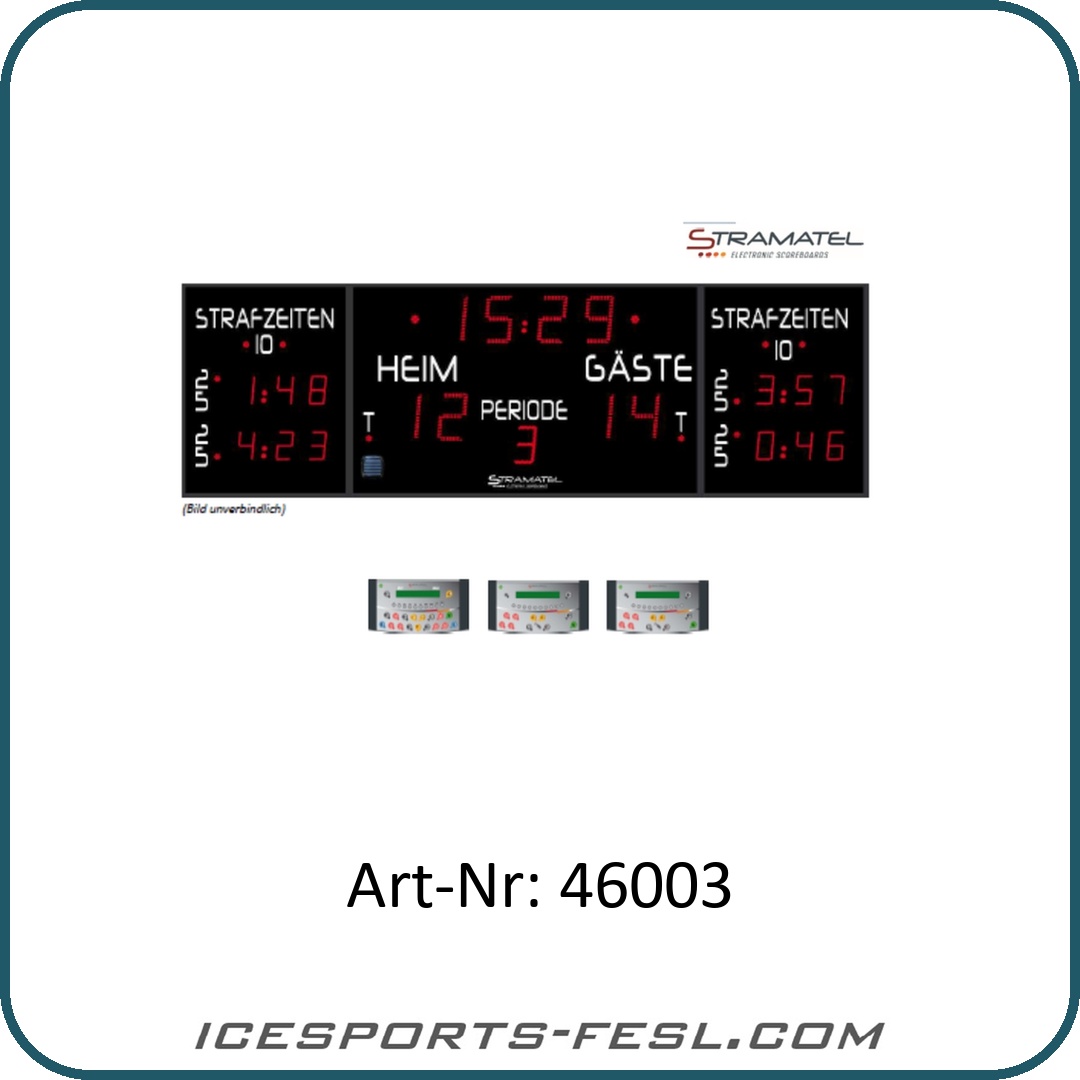

IF-PRO display panel 452 XGB9020 I+O

The high-quality and robust “452 XGE 9020” ice hockey scoreboard from Stramatel is ideal for use in indoor ice rinks and is also suitable for outdoor use thanks to the brightly lit LED digits. The well-protected electronics are also optimally protected against moisture.

Characteristics
– Size: (WxHxD) 3704 x 1150 x 90 mm
-Readability: 110 m (indoor&outdoor suitable with viewing angle >160°)
– Weight: 74 kg
– Control: Radio, transmission frequency 863-870 MHz
– Display: SMD LED with high brightness
– Transmission Wireless
– Power supply 230 V (mains)

Scope of delivery:
– Display panel consisting of 3 modules
– Customizable stickers (premises / visitors)
– 3 control panels
– 3 transport cases for storing the consoles
– 3 power cables
– Installation and operating instructions
– Repeat information on the LCD screen of the control panel
– Intuitive programming
– Scalability with additional modules and program update
– Easy installation (wall mounting does not require a chassis)

Display functions:
Main module:
– Score: 2 x 2-digit, red (digit height 25 cm)
– Game period: 1 digit, red (20 cm)
– Game time interruption: 2 x 1 red illuminated dot
– Playing time/pause time: 4-digit, red (25 cm) + 2 flashing luminous dots
– Time-out: 2 x 1 red illuminated dot
– Time: outside the game

Side modules:
– Penalty time timer: 2 x 3-digit, red (15cm) per module
– Display of 3 penalty times per team

Penalty display:
– 6 red LED light points for 2′, 5′ penalties and disciplinary penalty (10′) per module

Additional options
– DCF radio synchronization antenna (for Europe) or GPS antenna
– Rolling stand for floor plan

Product advantage
– Wireless control console supplied. Phone or tablet-based solution with the free STRAMATEL IceSport application available on Google Play
– Optimum visibility thanks to homogeneous LED lighting and anti-reflective plexiglass
– Unbreakable polycarbonate front (DIN 18032-3 standard)
– Customer-specific stickers (house – guests) Adjustable brightness via the control panel (9 brightness levels available) Unbreakable polycarbonate front (DIN 18032-3 standard)
– USB port for firmware updates (simple, fast and inexpensive)
– Frameless wall mounting
– 10 year warranty on material and 3 years on LED display (parts and labor)

Installation:
The display boards can be installed quickly and easily. Only a main connection is required for the radio-controlled board (230 V). The cable-controlled models require a main connection and the installation of a control cable, which is included with the display board.

PRODUCTION TIME:
approx. 5 weeks

The scoreboard on offer is supplied with radio control. The model is also available with cable control on request.
